07-12 Shelby GT500 Stealth Eliminator Racing System with 5.0L 4-V Fuel Rails
07-12 Shelby GT500 Stealth Eliminator Racing System with 5.0L 4-V Fuel Rails
Part Number: 17340 / UPC 00684980007459
Product Info
Product Info
P/N 17340: 07-12 GT500 Stealth EFI Fuel System.
For Mustang GT500's with Coyote 4-V 5.0L Swap.
For Continuous Duty/Street Applications See P/N 17341
For Mustang GT500's with Coyote 4-V 5.0L Swap.
- Rated for EFI engines producing up to 1,400 Flywheel HP Forced Induction or 1,900 Flywheel HP Naturally Aspirated.
- For 2007-2012 GT500 Mustang Chassis with engine swap to 5.0L 4-V Coyote engine and/or equivalent intake.
- Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty racing applications.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
For Continuous Duty/Street Applications See P/N 17341
Additional information
Additional information

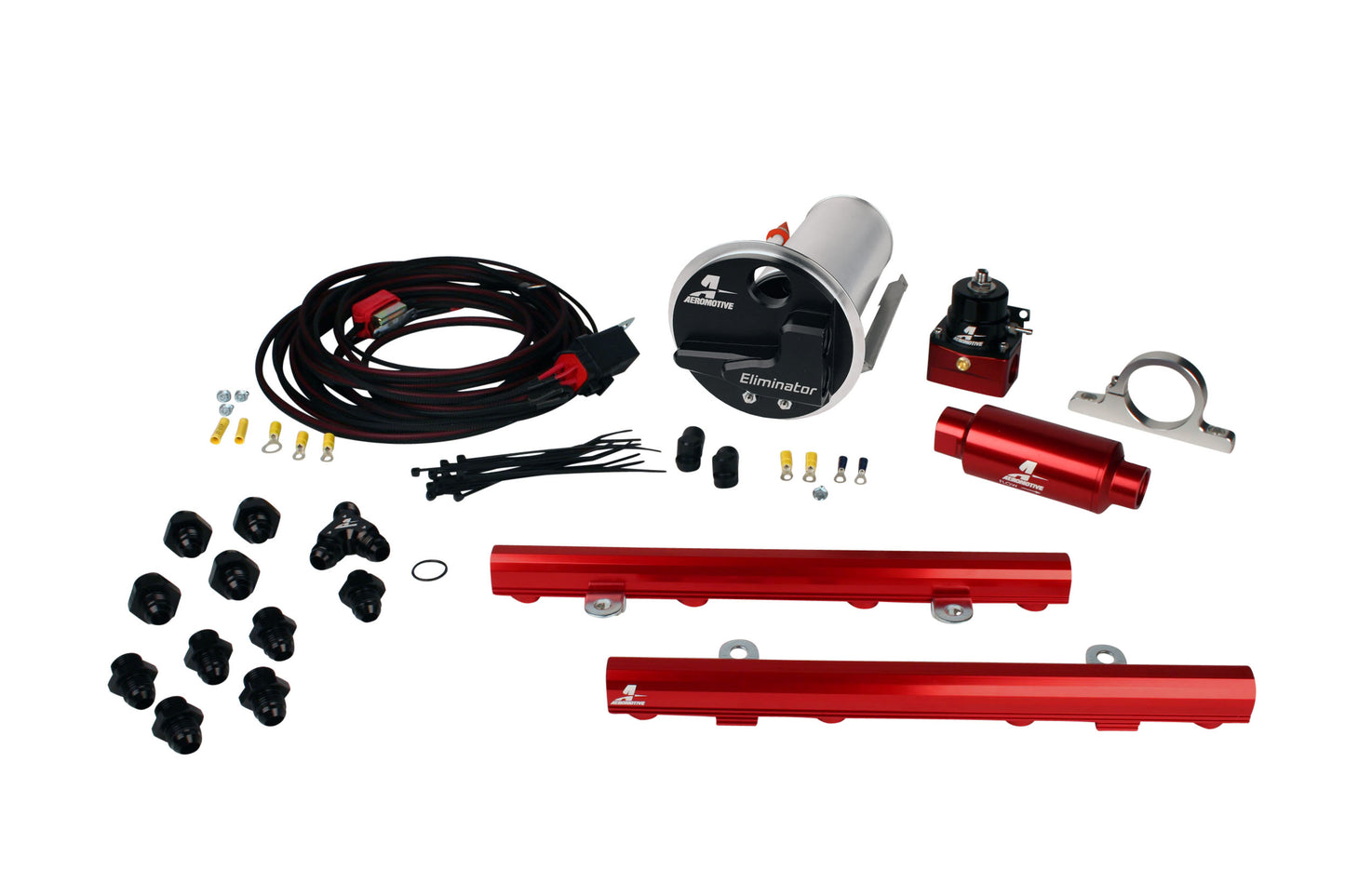

This Mustang Stealth Fuel System includes the Aeromotive Stealth Eliminator fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving. Fuel Lines and Hose-Ends sold separately.
This system contains the following parts (click on any item for more details):
1ea p/n 14130 Fuel Rails
1ea p/n 13134 Fuel Pressure Regulator
1ea p/n 18683 Fuel Pump Assembly
1ea p/n 16307 Fuel Pump Wiring Kit
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
5ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
This system contains the following parts (click on any item for more details):
1ea p/n 14130 Fuel Rails
1ea p/n 13134 Fuel Pressure Regulator
1ea p/n 18683 Fuel Pump Assembly
1ea p/n 16307 Fuel Pump Wiring Kit
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
5ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
Installation Instructions
Installation Instructions
Reviews
Reviews
07-12 Shelby GT500 Stealth Eliminator Racing System with 5.0L 4-V Fuel Rails
07-12 Shelby GT500 Stealth Eliminator Racing System with 5.0L 4-V Fuel Rails
Part Number: 17340 / UPC 00684980007459
Regular price
$2,719.95
Sale price
$2,719.95
Regular price
Unit price
/
per
Part Number: 17340 / UPC 00684980007459
Does This part fit My vehicle?
Product Info
Product Info
P/N 17340: 07-12 GT500 Stealth EFI Fuel System.
For Mustang GT500's with Coyote 4-V 5.0L Swap.
For Continuous Duty/Street Applications See P/N 17341
For Mustang GT500's with Coyote 4-V 5.0L Swap.
- Rated for EFI engines producing up to 1,400 Flywheel HP Forced Induction or 1,900 Flywheel HP Naturally Aspirated.
- For 2007-2012 GT500 Mustang Chassis with engine swap to 5.0L 4-V Coyote engine and/or equivalent intake.
- Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty racing applications.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
For Continuous Duty/Street Applications See P/N 17341
Additional information
Additional information
This Mustang Stealth Fuel System includes the Aeromotive Stealth Eliminator fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving. Fuel Lines and Hose-Ends sold separately.
This system contains the following parts (click on any item for more details):
1ea p/n 14130 Fuel Rails
1ea p/n 13134 Fuel Pressure Regulator
1ea p/n 18683 Fuel Pump Assembly
1ea p/n 16307 Fuel Pump Wiring Kit
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
5ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
This system contains the following parts (click on any item for more details):
1ea p/n 14130 Fuel Rails
1ea p/n 13134 Fuel Pressure Regulator
1ea p/n 18683 Fuel Pump Assembly
1ea p/n 16307 Fuel Pump Wiring Kit
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
5ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
Installation Instructions
Installation Instructions
Reviews
Reviews
Vehicle Applications
Year / Make / Model | 2007-2012 Ford Mustang Shelby GT500 |
---|
