NEW RETURNLESS STYLE KIT OPTION: Introducing the New Aeromotive Returnless Phantom Fuel System Kits. Engineered Specifically for use with the Vaporworx Fuel Pump Controllers. Utilizing the Vaporworx controller, we are able to completely eliminate the need for a fuel pressure regulator and return line. The Vaporworx fuel pump controller instantly varies the speed of the fuel pumps based on demand with use of a simple MAP sensor, creating an OEM+ style system, like all late model cars. This reduces the amount of heat introduced by the pump, creates quieter operation and improves overall efficiency. Please note: Requires the use of VaporWorx Fuel Pump Controller to run Returnless Style (#66136). Kit does not include fuel pump controller, but does include an additional 85psi in-tank overpressure fail safe valve.
Considering a switch to EFI or swapping in that late model motor? What has recently become the hottest trend in hot rodding has been plagued by fuel delivery. The question is always, what do I do for a tank? Up until now, it's been one of three options. Weld in a sump to your tank, go with a fuel cell or pay for a custom tank. Well, not any more. Aeromotive's Phantom Fuel System gives you the option to put a high performance fuel pump inside virtually any fuel tank, including your factory tank.
Simply cut a hole in you tank. Measure the depth. Cut you pump hanger bracket to length and your baffle / basket foam. Insert the baffle. Install the retainer ring and gasket. Bolt your pump and hanger down. That's it. Now you have a fuel pump inside your factory tank capable of supporting big horsepower EFI or Carbureted and its whisper quiet.
No more welding sumps or using up trunk space with fuel cells. No more hot fuel handling issues like vapor-lock and no more fuel slosh. The Phantom system's internal baffle / basket controls fuel slosh and keeps the fuel pump submerged in fuel, even at low fuel levels and in aggressive driving. The best part about this whole system - its completely universal. This system will fit virtually any tank from 6" deep to 11" deep, plastic, steel, aluminum, corrugated or smooth. One system that gives you everything you need to fuel your ride. Its serious performance you will never know is there!
Click here to learn more about this universal in tank fuel system.
Patent No. 8,783,287

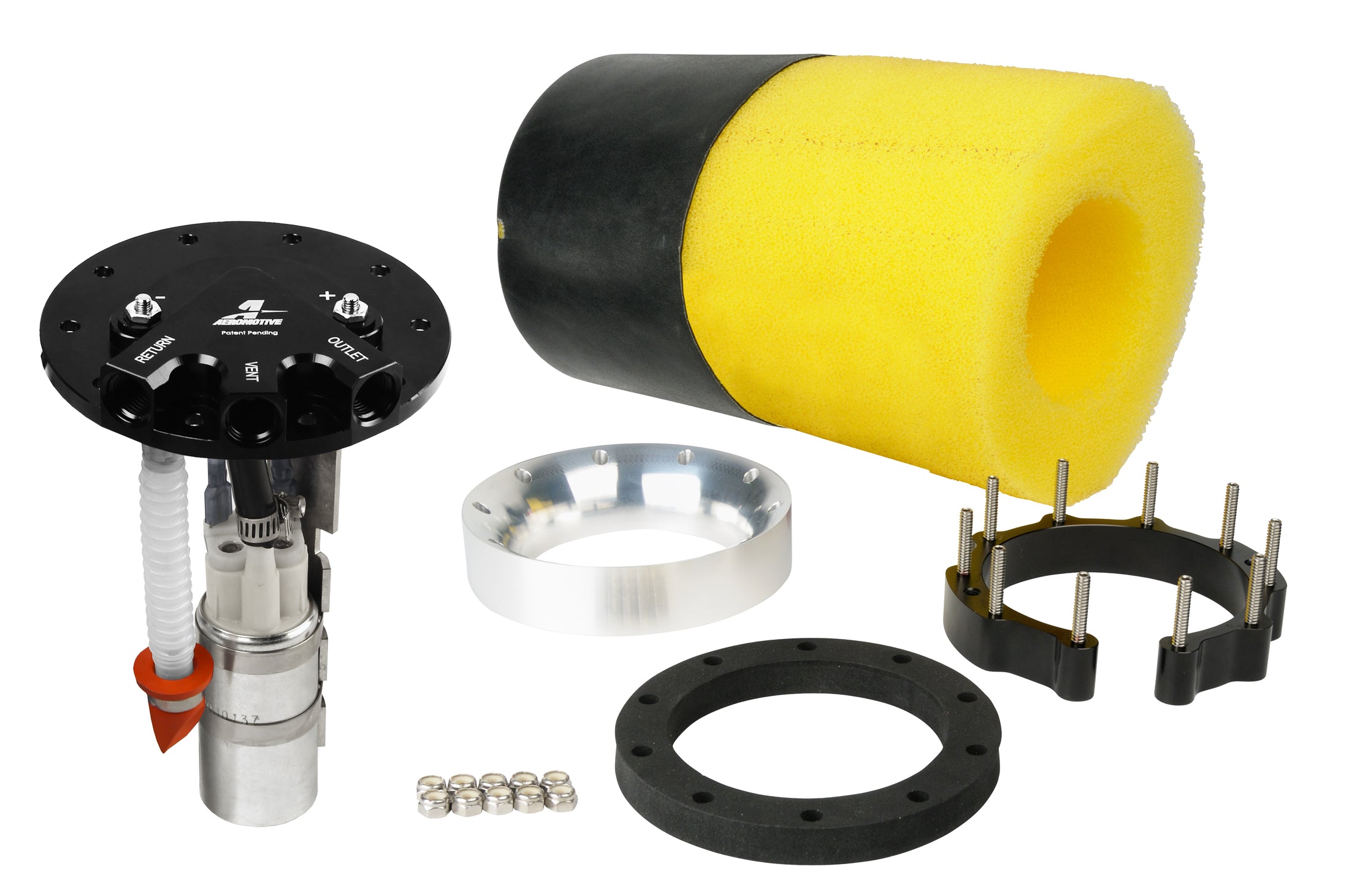

Features and Specifications:
- 200 lph high performance fuel pump
- Supports up to
- 450 HP EFI - Forced Induction
- 600 HP EFI - Naturally Aspirated
- 600 HP Carbureted - Forced Induction
- 750 HP Carbureted - Naturally Aspirated
- Black anodized hanger assembly
- (3) ORB-06 Ports Supply, Return, Vent
- Fuel resistant baffle / basket (Includes: Foam and Bladder)
- Universal high flow pre-pump filter
- Modular design can be cut to height to fit almost any fuel tank
- EFI or Carbureted
- Turbine pump mechanism increases durability.
- Must be used with a return style system (or returnless with the Returnless Style Kit option). If you run the Returnless Style Kit, you must also purchase the VaporWorx #66136 Fuel Pump Controller separately.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- In-tank use only
For our Phantom extension kit (p/n 18788), please click here.
Specifications
Specifications
| Series | Phantom |
|---|---|
| Maximum Flow Rating | 215@40PSI |
| Maximum Pressure | 80 |
| Fuel Type | Gas |
| Universal Or Specific Fit | Universal |
| Internal Or External | Internal |
| Pump Design | Turbine Impeller |
| Integrated Controller | No |
| Pulse Width Modulation Compatible | Yes; Returnless ONLY with Returnless Style Kit & VaporWorx Part Number #66136 (purchased separately) |
| Fuel Delivery Type | Carburation & Fuel Injection |
| Outlet Type | Female Thread |
| Outlet Outside Diameter | AN-06 |
| Maximum Current Draw | 8.3 |
| Voltage | 12 |
| Negative Ground | Yes |
| Wiring Harness Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Threaded Stud |
| Strainer Included | Yes |
| Fuel Sending Unit Included | No |
| Regulator Included | No |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Seal And Lock Ring Included | Yes |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
