One-Way AN-06 Check Valve

$78.99

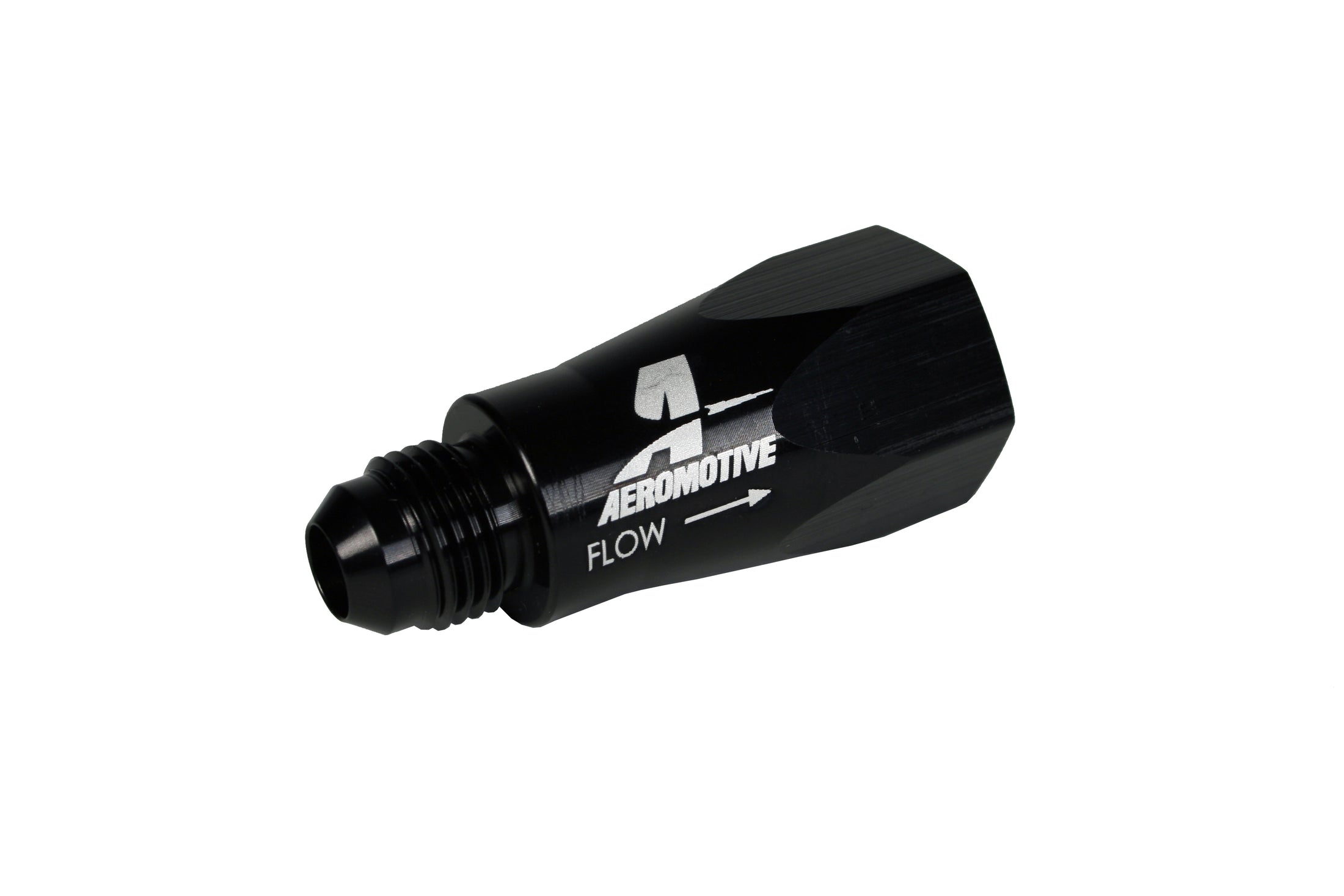

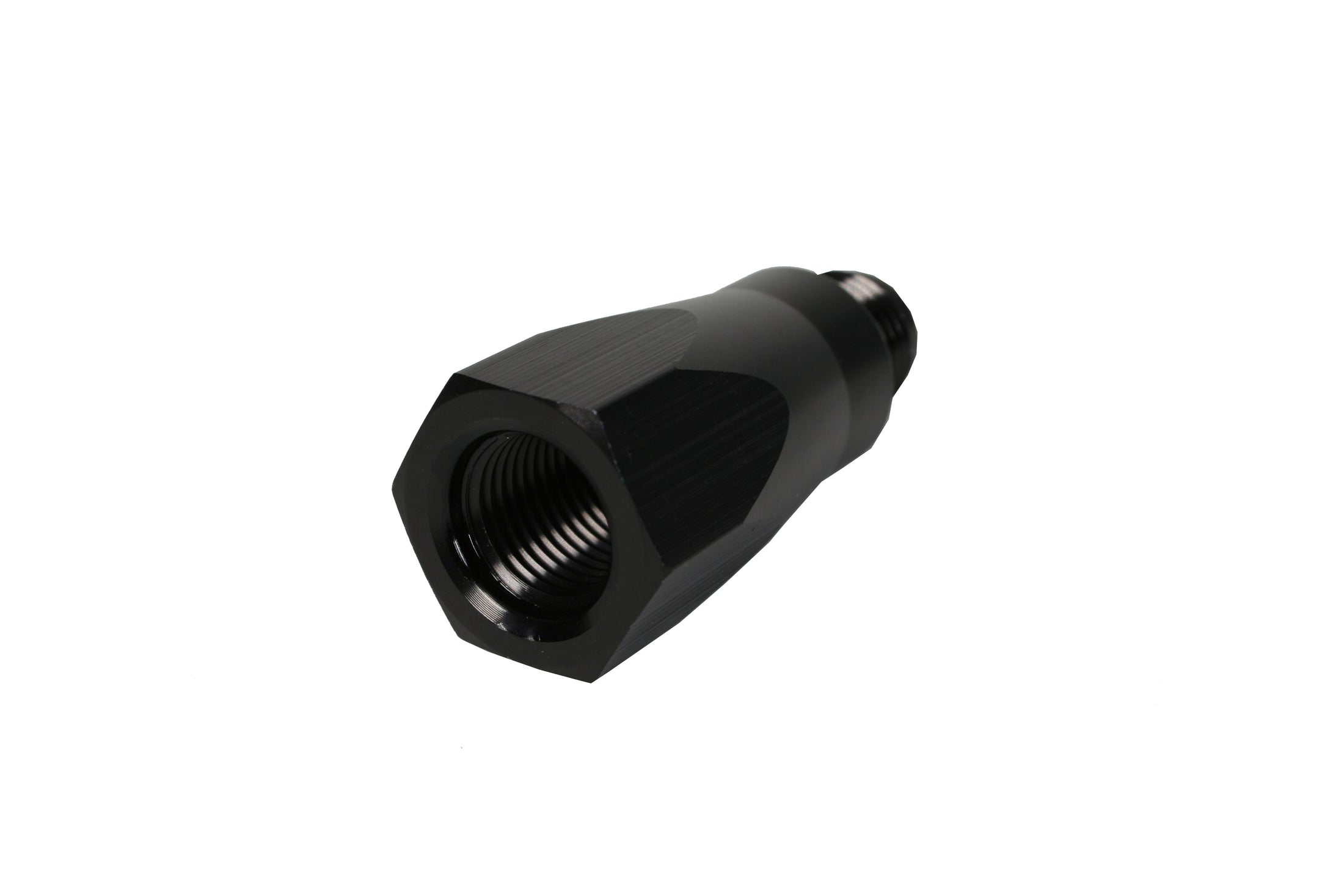

P/N 15106 AN-06 One-Way Check Valve
AN-06 inlet to ORB-06 outlet

  • For installation after pump, before regulator.
  • Requires ORB-06 to AN outlet fitting.
  • Gasoline only, not rated for alcohol fuels.

Description

High flow one-way check valves designed to prevent back-flow with minimal pressure drop. Ideal to prevent drain back after the fuel pump is turned off, or when dual pumps are used and both pumps may not run simultaneously.

  • CNC-machined billet aluminum and Type II bright dip black anodized finish.
  • AN-06 male inlet, ORB-06 female outlet connections.
  • Ideal configuration for easy installation into filter or fuel pump outlet port, no need for additional lines, hose-ends or fittings.
  • Suitable for use with gasoline fuels only, not alcohol compatible.
  • Use AN-06 o-rings P/N 15621 for installation into ORB-06 port.
  • Compatible ORB–06 to AN outlet adapters include:
    • ORB-06 to AN-08:  P/N 15649
    • ORB-06 to AN-06:  P/N 15606

Additional information

Weight 0.31 lbs
Dimensions 5.5 × 3.63 × 1.25 in

Mounting Configuration:

CARB or EFI Power Adder FUEL Horsepower
