340 LPH In-Tank Fuel Pump, Offset Inlet

340 LPH In-Tank Fuel Pump, Offset Inlet

Part Number: 11541
Skip to product information

Product Info

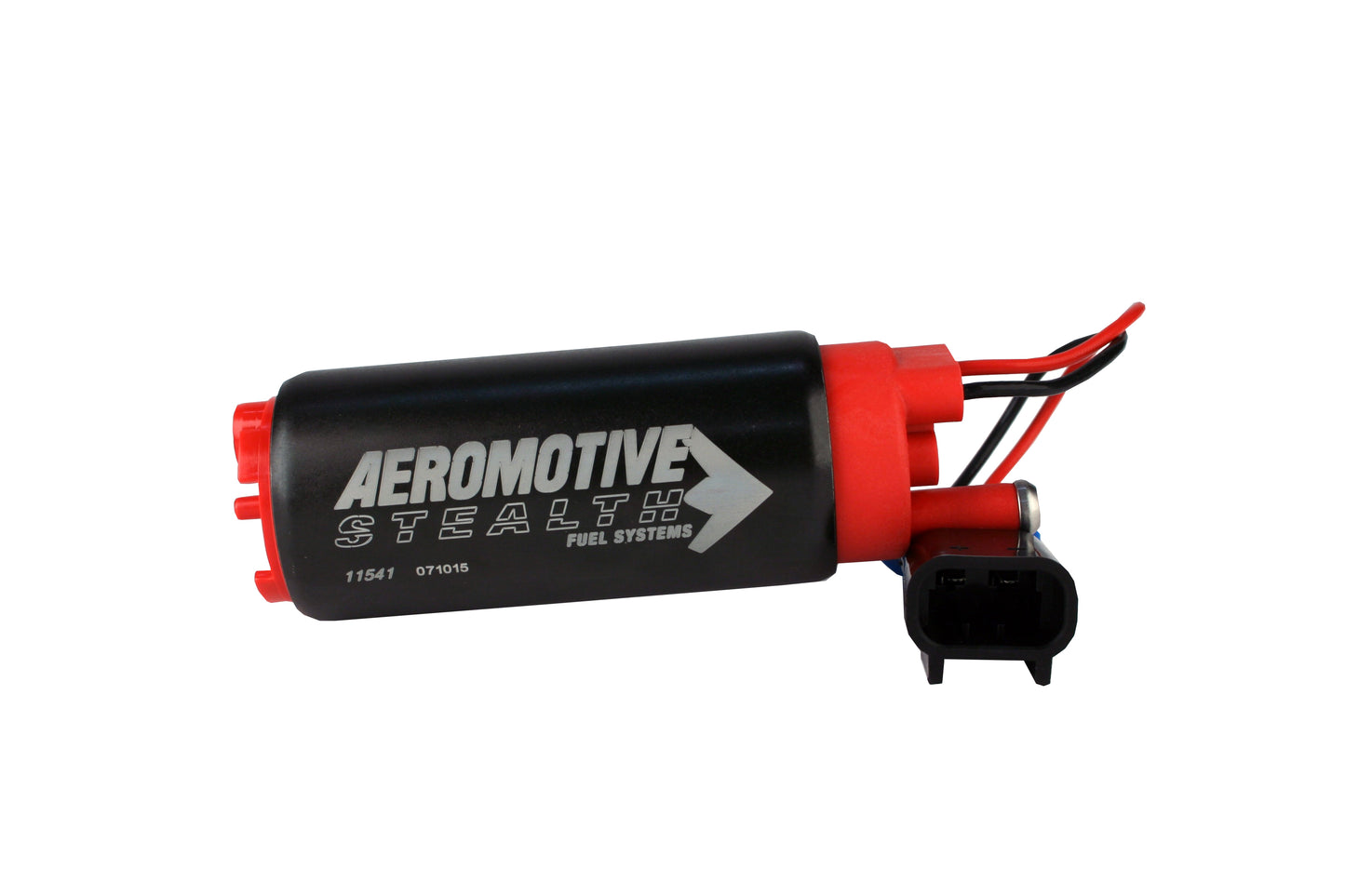

P/N 11541: 340 Fuel Pump, Offset Inlet

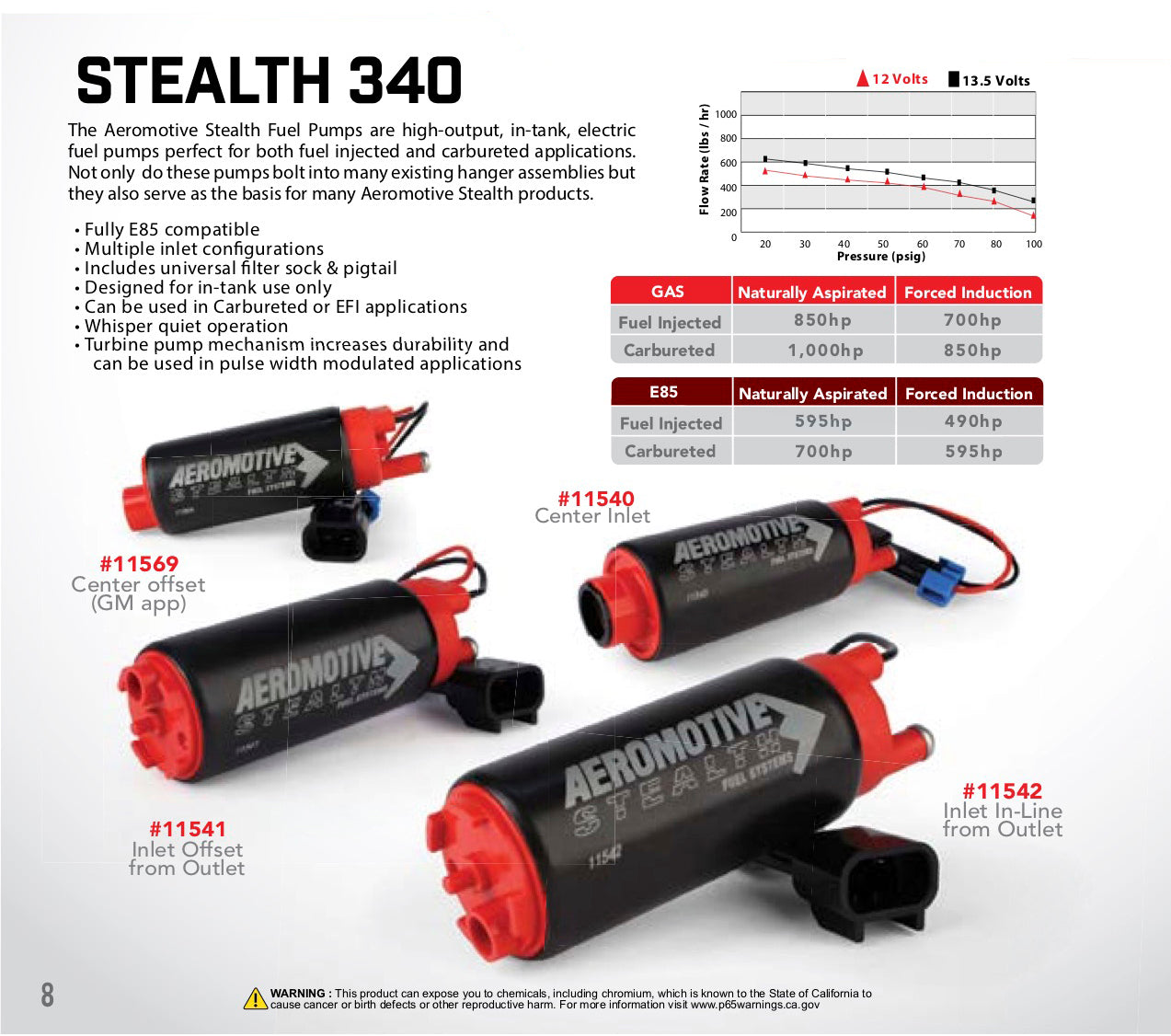

**Offset Inlet** The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. (to find your vehicle, see the applications guide below) What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.

  • Fits most vehicles where popular aftermarket pumps are applicable.

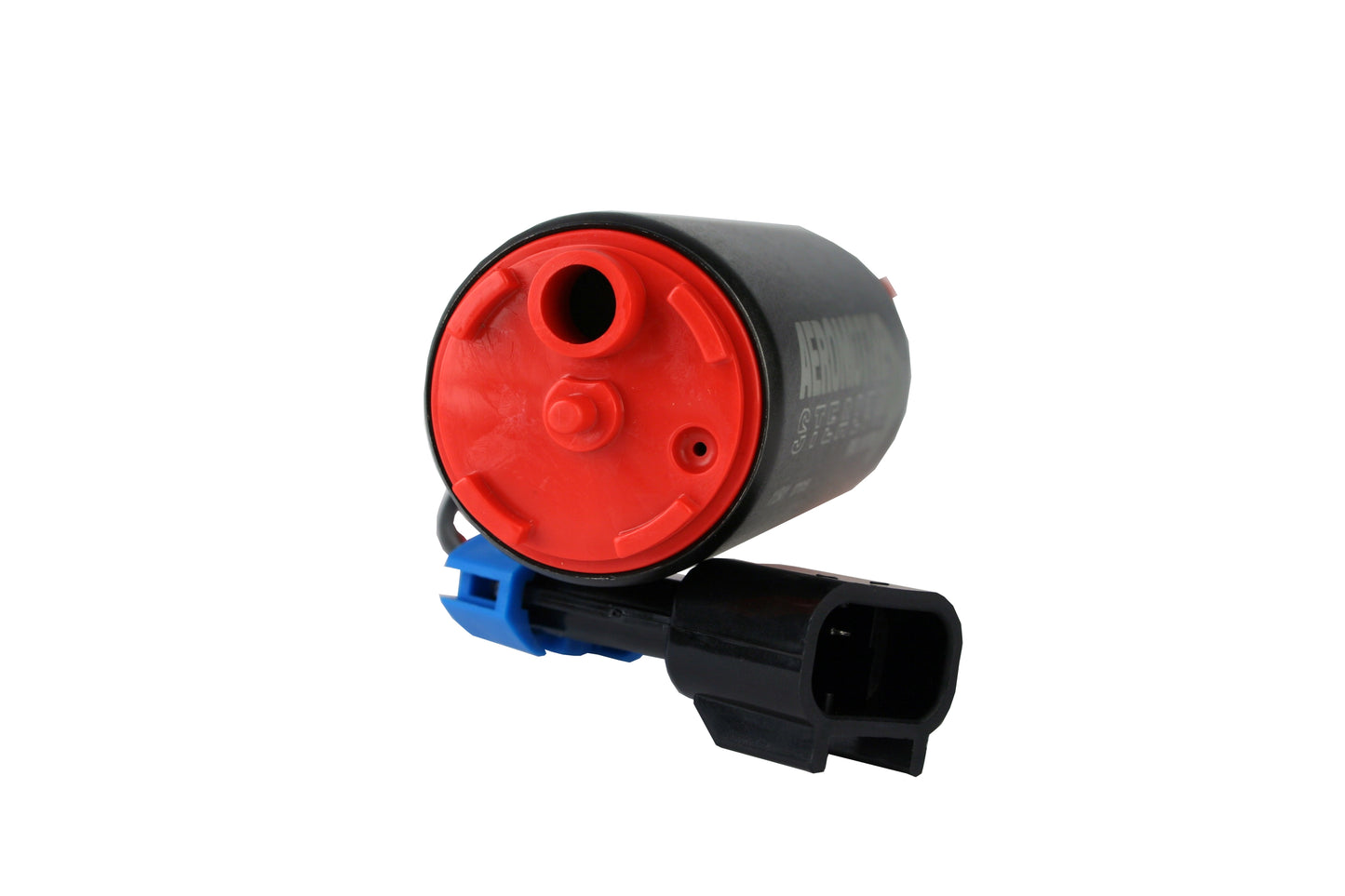

  • Offset Inlet, In-line with outlet

  • E85 Compatible

  • OEM 39mm Body

  • Includes universal filter sock - may not fit in some applications (see OEM filter replacement recommendations)

  • Designed for in-tank use only

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Can be used with carbureted or EFI applications

  • Turbine pump mechanism increases durability and can be used in pulse modulated applications.

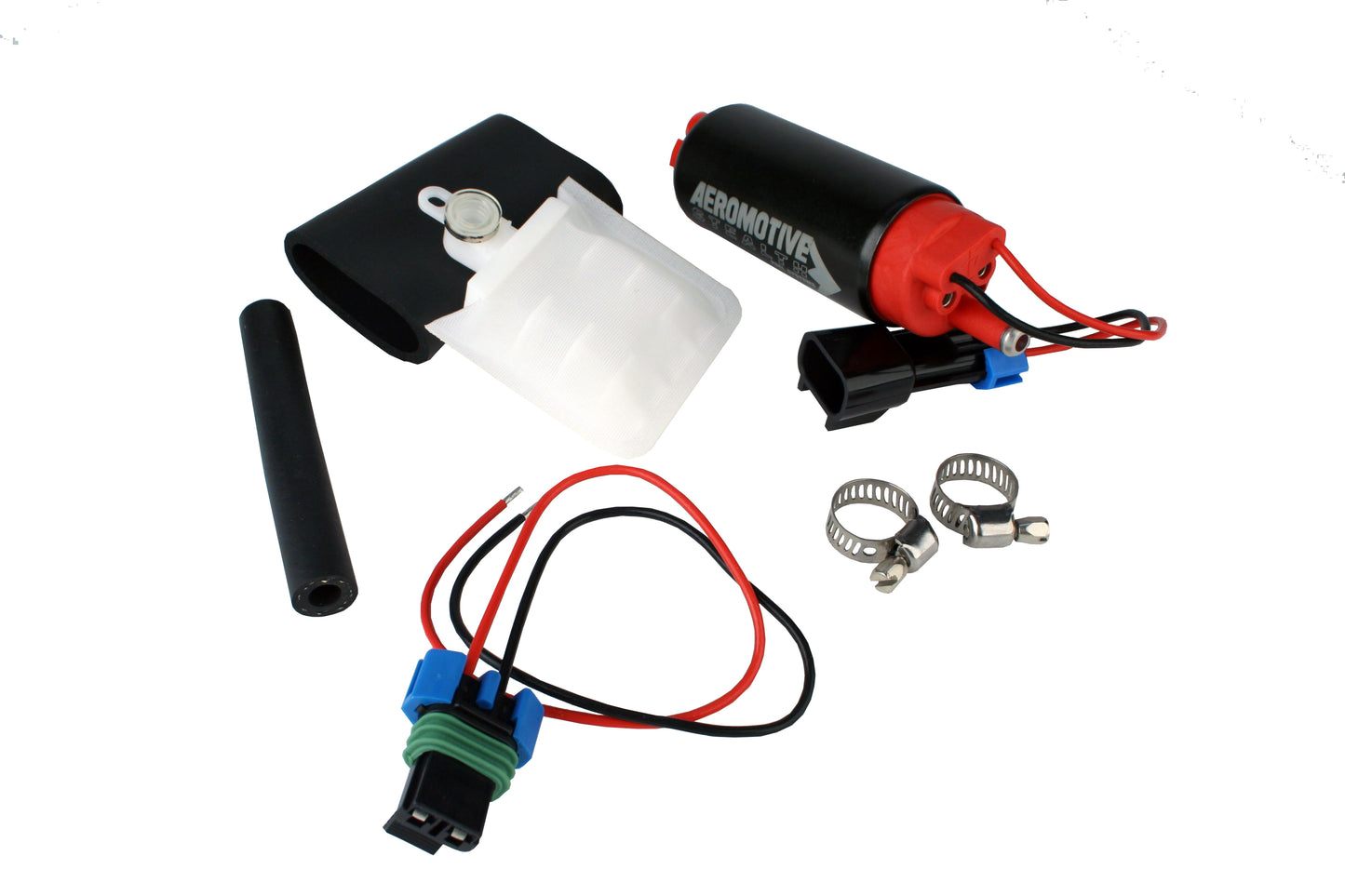

P/N 11541 Includes:

  • 340 Stealth Pump

  • Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)

  • Supersedes P/N 11141

Specifications

Series Stealth 340
Maximum Flow Rating 340
Maximum Pressure 65
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External Internal
Pump Design Turbine Impeller
Integrated Controller No
Pulse Width Modulation Compatible Yes
Fuel Delivery Type Carburation & Fuel Injection
Outlet Type Barb
Outlet Outside Diameter 0.35
Maximum Current Draw 15.5
Voltage 12
Negative Ground Yes
Wire Quantity 2
Wiring Harness Included Yes
Terminal Gender 280 Metri_Pack
Terminal Quantity 2
Terminal Type Lead Wire
Strainer Included Yes
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included No
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Limited Warranty for Pertronix and Aeromotive Products for the United States of America

PerTronix, LLC (for the Pertronix, Taylor, Doug’s, JBA, Patriot, Compu-Fire, and Spyke branded products) and Aeromotive, LLC (for the Aeromotive branded products) respectively warrant to the original end user purchaser in the United States that the Pertronix, Taylor, Doug’s, JBA, Patriot, Compu-Fire, and Spyke branded products (“Product(s)”) shall be free from defects in material and workmanship for the warranty durations set forth in the chart below from the date of purchase or delivery, whichever is later.

 Products Warranty Duration
  • Aeromotive marine pumps
  • PerTronix Ignitor, Ignitor II and Ignitor III products
  • All JBA Performance Exhaust products
  • All Doug's Headers products
2 years
  • All other Aeromotive products
  • All other PerTronix products
  • All Patriot Exhaust products
  • All Taylor Cable products
  • All Compu-Fire products
  • All Spyke products
1 year



Because PerTronix, LLC and Aeromotive, LLC (collectively, the “Company”) cannot control the quality of products sold by unauthorized sellers, this warranty applies only to Products that were purchased from the Company or the Company’s authorized sellers in the United States, unless otherwise prohibited by law. Company reserves the right to reject warranty claims for Products purchased from unauthorized sellers, including unauthorized Internet sites.

This warranty does not cover any defects due to normal wear and tear, damage due to misuse, alteration to the product, negligence, damage caused by aftermarket applied coatings, discoloration, or corrosion of finished surfaces. This warranty also does not cover damage resulting from collision, improper installation, off-road use, road hazards, the use of exhaust insulating wrap or like products, or rust occurring after installation.

Purchasers of a Product who wish to make a warranty claim based upon an alleged Product defect should email the Company at techs@aeromotiveinc.com (for Aeromotive products) or techs@pertronix.com (for PerTronix products) the following information: (1) Product subject to the claim, (2) brief description of the alleged defect, (3) date and place of purchase/delivery, (4) proof of purchase (showing when and where the Product was purchased), and (5) pictures or videos of the Product. If you purchased on an online marketplace, please be sure the proof of purchase shows from whom you purchased (this information is available in your order history). In some instances, Company may instruct you to mail the Product to Company for inspection and/or repair; if such instruction is provided, Company will provide you with a prepaid shipping label. You can also contact the Company Monday – Friday, 8AM – 6:30PM CT at (913) 808-2376.

Company will replace or repair a defective Product that is covered by this warranty. This
warranty does not cover the cost of removal or installation. Company will pay for the return shipping of the Product to the purchaser.

There are no warranties which extend beyond those stated herein. ANY IMPLIED
WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some States do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

UNDER NO CIRCUMSTANCES SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF THIS LIMITED
WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

If you have any questions about whether a seller is authorized, please contact us at (913) 808-2376.

This warranty supersedes any warranties stated in product manuals or other written materials.

Effective Date: March 16, 2026

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Limits of Responsibility:

  • See Product Warranty page for more info.

Reviews

340 LPH In-Tank Fuel Pump, Offset Inlet

340 LPH In-Tank Fuel Pump, Offset Inlet

Part Number: 11541
Regular price $168.55
Sale price $168.55 Regular price

Part Number: 11541
Does This part fit My vehicle?
Product details
Payment methods
  • Visa
  • Mastercard
  • PayPal
  • American Express
  • Discover
  • Affirm
This product has free shipping!
Emissions code

Emissions Code

Continue Reading to Understand Emissions Codes

View full details

Product Info

P/N 11541: 340 Fuel Pump, Offset Inlet

**Offset Inlet** The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. (to find your vehicle, see the applications guide below) What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.

  • Fits most vehicles where popular aftermarket pumps are applicable.

  • Offset Inlet, In-line with outlet

  • E85 Compatible

  • OEM 39mm Body

  • Includes universal filter sock - may not fit in some applications (see OEM filter replacement recommendations)

  • Designed for in-tank use only

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Can be used with carbureted or EFI applications

  • Turbine pump mechanism increases durability and can be used in pulse modulated applications.


P/N 11541 Includes:

  • 340 Stealth Pump

  • Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)

  • Supersedes P/N 11141

Specifications

Series Stealth 340
Maximum Flow Rating 340
Maximum Pressure 65
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External Internal
Pump Design Turbine Impeller
Integrated Controller No
Pulse Width Modulation Compatible Yes
Fuel Delivery Type Carburation & Fuel Injection
Outlet Type Barb
Outlet Outside Diameter 0.35
Maximum Current Draw 15.5
Voltage 12
Negative Ground Yes
Wire Quantity 2
Wiring Harness Included Yes
Terminal Gender 280 Metri_Pack
Terminal Quantity 2
Terminal Type Lead Wire
Strainer Included Yes
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included No
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Limited Warranty for Pertronix and Aeromotive Products for the United States of America

PerTronix, LLC (for the Pertronix, Taylor, Doug’s, JBA, Patriot, Compu-Fire, and Spyke branded products) and Aeromotive, LLC (for the Aeromotive branded products) respectively warrant to the original end user purchaser in the United States that the Pertronix, Taylor, Doug’s, JBA, Patriot, Compu-Fire, and Spyke branded products (“Product(s)”) shall be free from defects in material and workmanship for the warranty durations set forth in the chart below from the date of purchase or delivery, whichever is later.

 Products Warranty Duration
  • Aeromotive marine pumps
  • PerTronix Ignitor, Ignitor II and Ignitor III products
  • All JBA Performance Exhaust products
  • All Doug's Headers products
2 years
  • All other Aeromotive products
  • All other PerTronix products
  • All Patriot Exhaust products
  • All Taylor Cable products
  • All Compu-Fire products
  • All Spyke products
1 year



Because PerTronix, LLC and Aeromotive, LLC (collectively, the “Company”) cannot control the quality of products sold by unauthorized sellers, this warranty applies only to Products that were purchased from the Company or the Company’s authorized sellers in the United States, unless otherwise prohibited by law. Company reserves the right to reject warranty claims for Products purchased from unauthorized sellers, including unauthorized Internet sites.

This warranty does not cover any defects due to normal wear and tear, damage due to misuse, alteration to the product, negligence, damage caused by aftermarket applied coatings, discoloration, or corrosion of finished surfaces. This warranty also does not cover damage resulting from collision, improper installation, off-road use, road hazards, the use of exhaust insulating wrap or like products, or rust occurring after installation.

Purchasers of a Product who wish to make a warranty claim based upon an alleged Product defect should email the Company at techs@aeromotiveinc.com (for Aeromotive products) or techs@pertronix.com (for PerTronix products) the following information: (1) Product subject to the claim, (2) brief description of the alleged defect, (3) date and place of purchase/delivery, (4) proof of purchase (showing when and where the Product was purchased), and (5) pictures or videos of the Product. If you purchased on an online marketplace, please be sure the proof of purchase shows from whom you purchased (this information is available in your order history). In some instances, Company may instruct you to mail the Product to Company for inspection and/or repair; if such instruction is provided, Company will provide you with a prepaid shipping label. You can also contact the Company Monday – Friday, 8AM – 6:30PM CT at (913) 808-2376.

Company will replace or repair a defective Product that is covered by this warranty. This
warranty does not cover the cost of removal or installation. Company will pay for the return shipping of the Product to the purchaser.

There are no warranties which extend beyond those stated herein. ANY IMPLIED
WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some States do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

UNDER NO CIRCUMSTANCES SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF THIS LIMITED
WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

If you have any questions about whether a seller is authorized, please contact us at (913) 808-2376.

This warranty supersedes any warranties stated in product manuals or other written materials.

Effective Date: March 16, 2026

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Limits of Responsibility:

  • See Product Warranty page for more info.

Reviews

340 LPH In-Tank Fuel Pump, Offset Inlet
340 LPH In-Tank Fuel Pump, Offset Inlet
Regular price $168.55
Sale price $168.55 Regular price

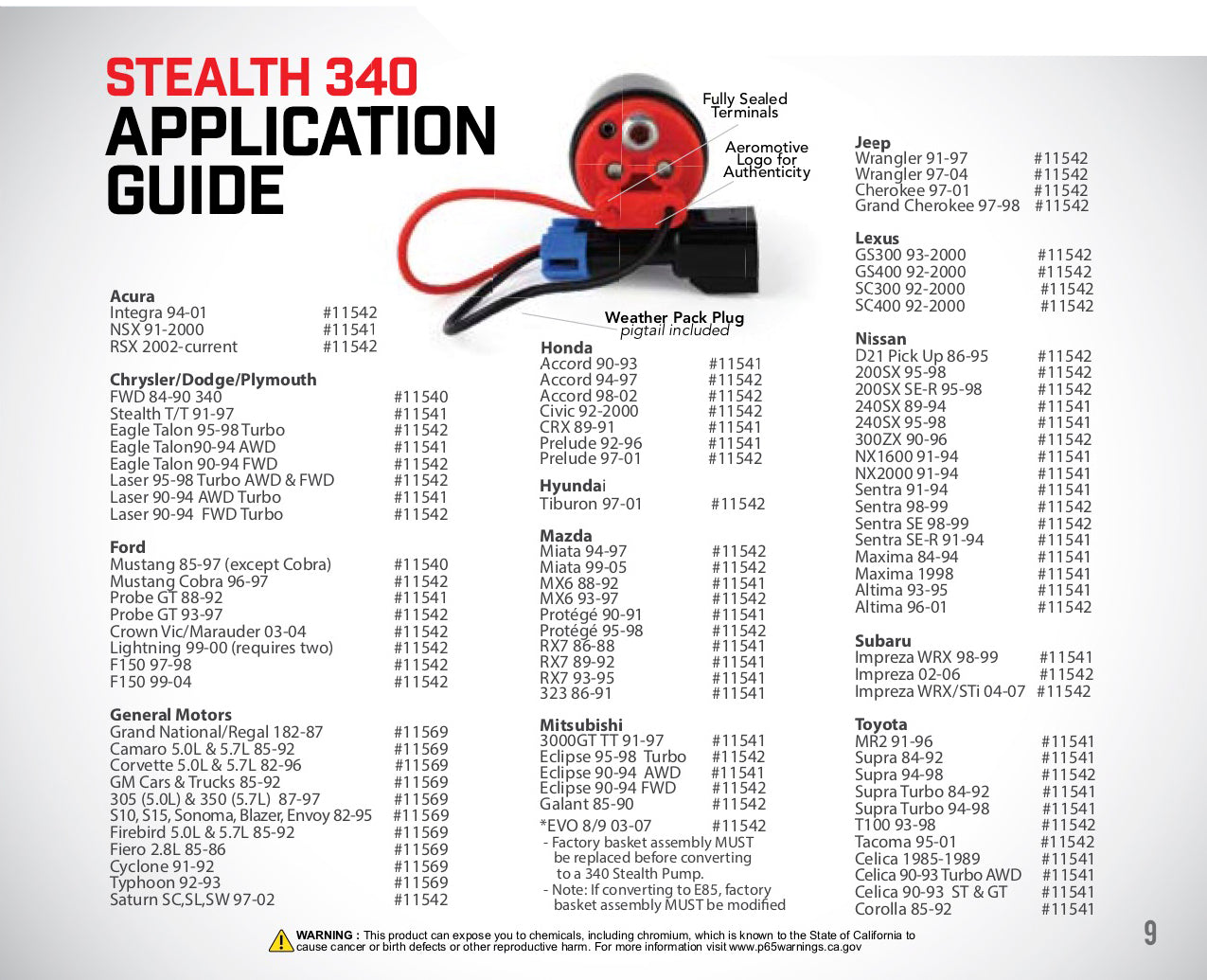

Year / Make / Model 1998-1999 Subaru Impreza
Engine Size(s) Liters: 2.2, 2.5

Year / Make / Model 1991-1996 Dodge Stealth
Engine Size(s) Liters: 3.0
Cubic Inches: 181

Year / Make / Model 1990-1994 Eagle Talon
Engine Size(s) Liters: 2.0
Cubic Inches: 122

Year / Make / Model 1992-1994 Plymouth Laser
Engine Size(s) Liters: 2.0
Cubic Inches: 122

Year / Make / Model 1989-1992 Ford Probe GT
Engine Size(s) Liters: 2.2
Cubic Inches: 133

Year / Make / Model 1991-2000 Acura NSX
Engine Size(s) Liters: 3.0, 3.2

Year / Make / Model 1990-1993 Honda Accord
Engine Size(s) Liters: 2.2

Year / Make / Model 1989-1991 Honda CRX
Engine Size(s) Liters: 1.5, 1.6
Cubic Inches: 98

Year / Make / Model 1991-1993 Nissan NX
Engine Size(s) Liters: 1.6, 2.0
Cubic Inches: 97, 122

Year / Make / Model 1989-1998 Nissan 240SX
Engine Size(s) Liters: 2.4

Year / Make / Model 1996-2001 Nissan Altima
Engine Size(s) Liters: 2.4

Year / Make / Model 1984-1994 Nissan Maxima
Engine Size(s) Liters: 2.4, 3.0
Cubic Inches: 181

Year / Make / Model 1998 Nissan Maxima
Engine Size(s) Liters: 3.0
Cubic Inches: 182

Year / Make / Model 1991-1994 Nissan Sentra
Engine Size(s) Liters: 1.6, 2.0
Cubic Inches: 97, 122

Year / Make / Model 1990-1994 Mitsubishi Eclipse
Engine Size(s) Liters: 2.0
Cubic Inches: 122

Year / Make / Model 1991-1997 Mitsubishi 3000GT
Engine Size(s) Liters: 3.0
Cubic Inches: 181

Year / Make / Model 1985-1989 Toyota Celica
Engine Size(s) Liters: 2.0, 2.4, 2.8
Cubic Inches: 122

Year / Make / Model 1990-1993 Toyota Celica
Engine Size(s) Liters: 2.0
Cubic Inches: 122

Year / Make / Model 1990-1993 Toyota Celica GT
Engine Size(s) Liters: 2.2

Year / Make / Model 1985-1992 Toyota Corolla
Engine Size(s) Liters: 1.6

Year / Make / Model 1991-1995 Toyota MR2
Engine Size(s) Liters: 2.0, 2.2
Cubic Inches: 122

Year / Make / Model 1986-1992 Toyota Supra
Engine Size(s) Liters: 3.0

Year / Make / Model 1987-1992 Toyota Supra Turbo
Engine Size(s) Liters: 3.0

Year / Make / Model 1988-1992 Mazda MX-6
Engine Size(s) Liters: 2.2

Year / Make / Model 1986-1991 Mazda RX-7
Engine Size(s) Liters: 1.3

Year / Make / Model 1993-1995 Mazda RX-7
Engine Size(s) Liters: 1.3

Year / Make / Model 1986-1991 Mazda 323
Engine Size(s) Liters: 1.6, 1.8

Year / Make / Model 1990-1991 Mazda Protege
Engine Size(s) Liters: 1.8
