07-12 Shelby GT500 Stealth A1000 Racing Fuel System with 5.0L 4-V Fuel Rails

$1,711.26

P/N 17316 07-12 GT500 Stealth EFI Fuel System.
For Mustang GT500’s with Coyote 4-V 5.0L Swap.

  • Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated.
  • For 2007-2012 GT500 Mustang Chassis with engine swap to 5.0L 4-V Coyote engine and/or equivalent intake.
  • Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty racing applications.

For Continuous Duty/Street Applications See P/N 17317

View Installation Instructions

Description

This Mustang Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump.  This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings.  Fuel Pump Electrical Supply is also provided, including our amazing HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving. Fuel Lines and Hose-Ends sold separately.

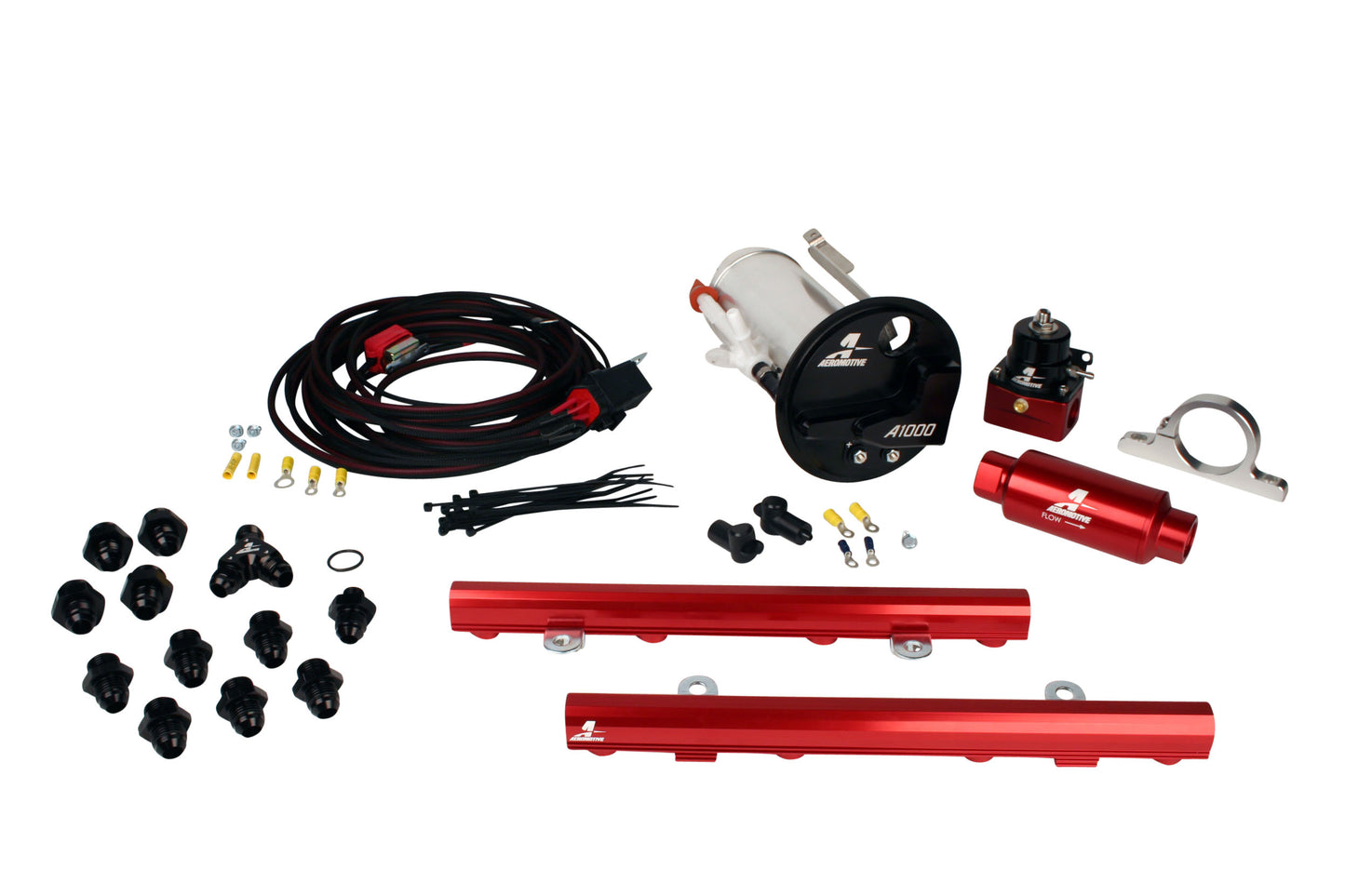

This system contains the following parts (click on any item for more details):

1ea p/n 14130 Fuel Rails
1ea p/n 13101 Fuel Pressure Regulator
1ea p/n 18682 Fuel Pump Assembly
1ea p/n 16307 Fuel Pump Wiring Kit
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
4ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15649 ORB-06 to AN-08 Fitting
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring



Additional information

Weight 18.11 lbs
Dimensions 19 × 13 × 13 in

Mounting Configuration:

CARB or EFI Power Adder FUEL Horsepower
